詳細描述
| 產品型號 | JGZM10325-45° |
| 進料速度 | 0.7-7m/min |
| 最小加工尺寸 | 50*50mm |
| 加工厚度 | 3-25mm |
| 功率 | 22kw |
| 外形尺寸 | 7200*1000*2500mm |
| 重量 | 3200kg |
| 電壓 | 380V50HZ |
| 斜邊角度 | 45°（小斜邊） |
| 斜邊磨輪 | 外徑150mm |
| 最大斜邊寬度 | 依產品的厚度而定，厚度越厚，斜面寬度越寬 |

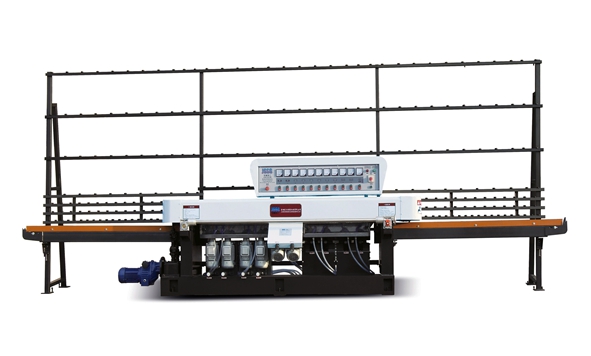

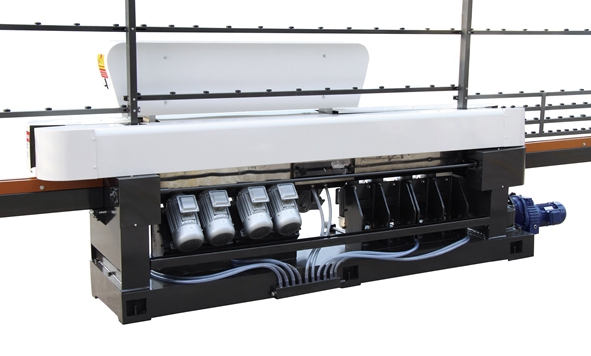

JGZM10325-45°玻璃直線磨邊機:本機適用于不同尺寸和厚度的平板玻璃的直邊和棱角磨削，粗精磨拋光一次完成，拋光后平面接近于玻璃母體的光潔程度，本機適合加工超白水族魚缸玻璃，配置低速電機，安裝CE3拋光輪。調整不同加工厚度時，（可參考前梁上的數顯表進行調裝），前倒角磨頭能隨前梁同步移動，具有結構先進，精確度高，操作方便，同一厚度可連續加工等優點，是魚缸玻璃磨邊加工必備設備。
Model JGZM10325-45° Glass Straight-Line Machine:The machine is applicable to the grinding edge,botton edge and pointedness of plate glass of different size thickness.It provides rough and fine gringing and polishing at once.It can be polishing itself,and the edge that has been polished just looks like the origenal.While adjusting different processing thickness,collate the transmitting systen that controled by eletronic before adjusting,and the fore chamfering grinder can be moved synchronically with the fore beam,with advanced structure high precision,easy operation and high working efficiency.It is the necessary tool for glass technology.
|
||
|
|
|
|
|
 |
