詳細描述
加工玻璃厚度
總功率
電壓
玻璃回轉直徑
斜邊角度
斜邊磨輪
3mm-30mm
3kw
380V 50HZ
100-2100mm
0°-20°
150 (碗形)

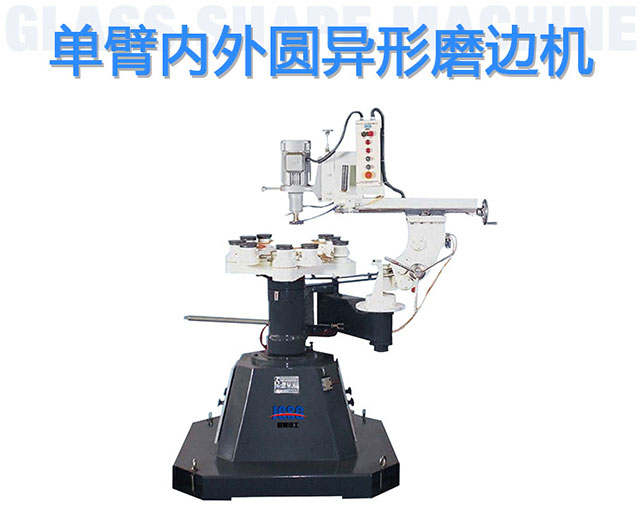

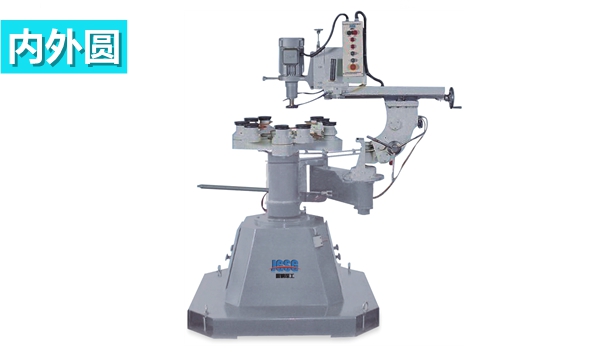

本機適用于加工各類平板玻璃的圓弧邊、鴨嘴邊、斜邊、及其它形變、（視磨輪形狀）。形狀簡單的可實行半自動磨削。本機針對以往機型的不足之處，提高了轉盤的精度，保證斜邊的磨削精度；本機與眾不同的增加了剎車系統，消除了運動間隙，并在轉動中施加了適度載荷（可調）使得本機長期可保持無間隙動作，因此大大減少了磨削時的振動。使操作更加方便效率更高。
This machine is suitable for processing all kinds of flat glass arc edge, duck mouth edge, bevel edge, and other deformation, (apparent grinding wheel shape). Simple shape can be implemented semi-automatic grinding. In view of the shortcomings of the previous models, this machine improves the accuracy of the turntable and ensures the grinding accuracy of the bevel; this machine increases the braking system differently and eliminates the motion gap. At the same time, a moderate load (adjustable) is applied in the rotation, which makes the machine keep no clearance action for a long time, so the vibration during grinding is greatly reduced. Make the operation more convenient and efficient.
